CROSSGRIP PVC

CROSSGRIP PVC

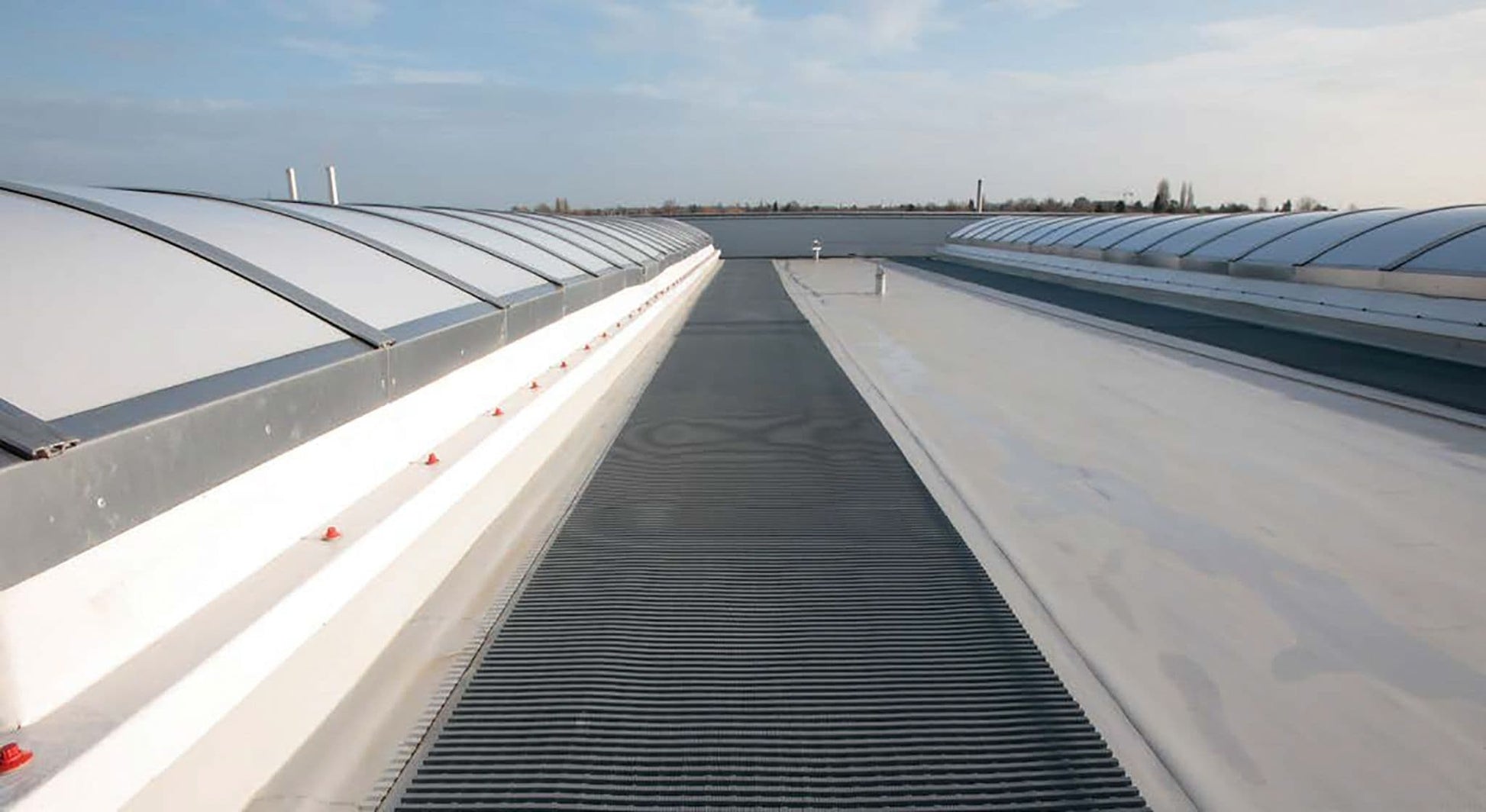

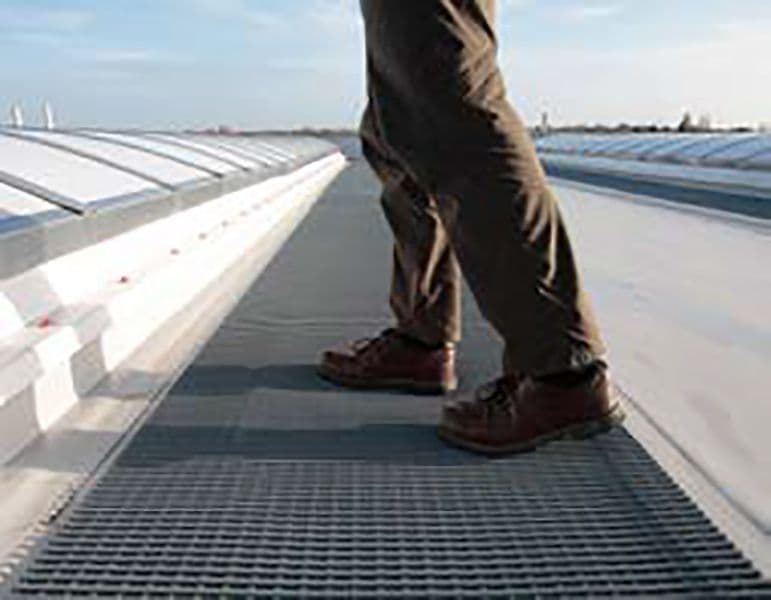

A durable open‑grid walkway matting engineered for flat roofs, gantries and high‑level access areas, delivering reliable slip resistance and performance in all weather conditions. Designed with a flexible two‑layer PVC construction and diamond‑cut surface pattern, it provides secure underfoot grip while allowing excellent drainage to keep walkways safe and clear. Its loose‑lay design enables fast installation with no fixings required, while contouring to roof structures to protect underlying membranes and ensure long‑term durability in demanding environments.

Technical Specification

Overall Height: 14 mm

Construction

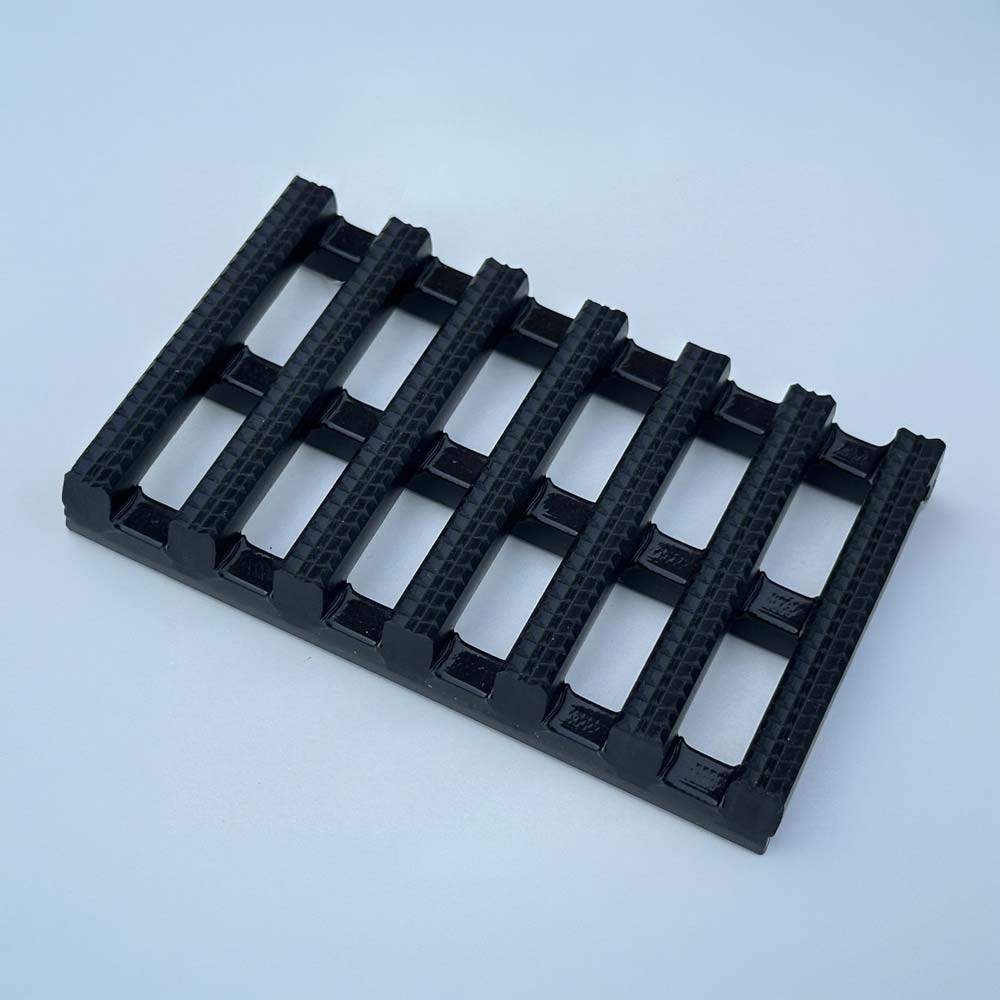

Two‑layer open grid construction in flexible PVC

Insert Type
Integral PVC surface with diamond‑cut tread pattern

Surface Options
Open grid surface

Application
Flat roofs, gantries and high‑level walkways
Suitable for pedestrian access in exposed environments

Performance
Diamond‑cut pattern and cross‑directional ribs for secure underfoot grip
Excellent drainage performance
Contours over roof structures and fittings
Stable in high wind conditions

Weight 6.6 kg/m²

Slip Resistance
DIN 51130: R10 ASTM F1677 dry/wet 1.0 / 0.9

Fire Rating
EN ISO 13501‑1: Cfl‑s1

Environmental Suitability
UV resistant
Resistant to most acids, alkalines and oils
Phthalate‑free
100 % recyclable
Non‑porous surface resistant to bacterial growth
Operational temperature range ‑23 °C to +60 °C

Installation
Loose‑lay system with no fixing required
Supplied in rolls and cut to fit on site
Contours to roof surfaces

Cleaning
Lift or roll for cleaning
Suitable for pressure washing

Manufacture
Manufactured in the UK

Warranty
5‑year warranty

Other Colours Available
Yes

Download Data Sheet View full details

KEY FEATURES

High Slip Resistance

Diamond-cut surface and cross-directional ribs provide secure footing in wet and hazardous conditions.

Effective Drainage

Open grid structure allows water, debris and contaminants to fall through, maintaining grip underfoot.

Loose Lay Installation

No fixing required—quick to install, reposition, or remove as needed.

Protects Roof Membranes

Contours to roof surfaces, preventing damage from foot traffic and equipment.

Durable Two-Layer Construction

Strong, flexible design delivers long-term performance in demanding environments.

Weather & UV Resistant

Performs reliably in extreme temperatures and exposed outdoor conditions.

Need more detail?

WhatsAppEmail

Summary

Crossgrip PVC is an effective solution for flat roofs and elevated walkways, providing reliable slip resistance and durability in exposed environments. Its flexible, open‑grid PVC construction delivers excellent drainage and contours to surfaces for safe, stable footing.
Supplied in easy‑to‑install loose‑lay rolls, it offers a fast, practical solution for access routes while protecting underlying roof membranes.
Connector clips
For joining sections across larger areas
PVC edging strips
For a clean, safe perimeter finish
Snap track systems
For seamless joining of matting sections
Available in 600 mm, 910 mm and 1220 mm widths, supplied in 10 m rolls or cut‑to‑length.
Colours include Black, Grey, Yellow and White, with additional options available.
