VYNAGRIP

VYNAGRIP

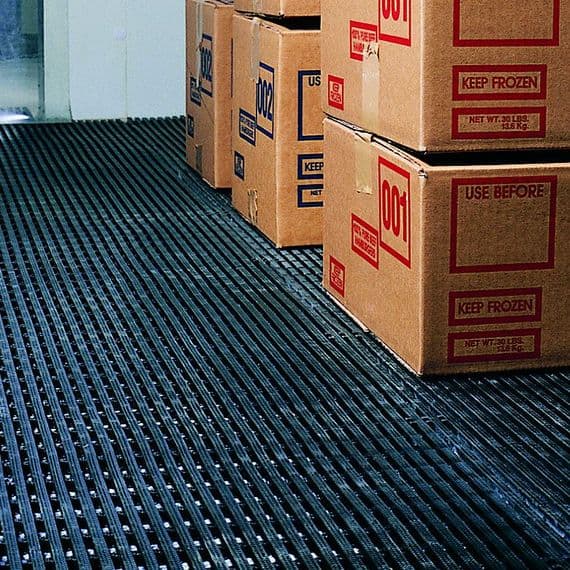

Heavy-duty cold room and freezer matting: High-slip resistance, solid construction designed to perform in extreme temperatures from -23°C to 60°C. Engineered for fast, simple installation in commercial and industrial cold storage areas, it promotes efficient drainage, reduces fatigue underfoot, and enhances hygiene standards. Trusted by major operators including McDonald’s UK, it delivers reliable safety and durability in high-risk environments.

Technical Specification

Overall Height: 15 mm

Construction

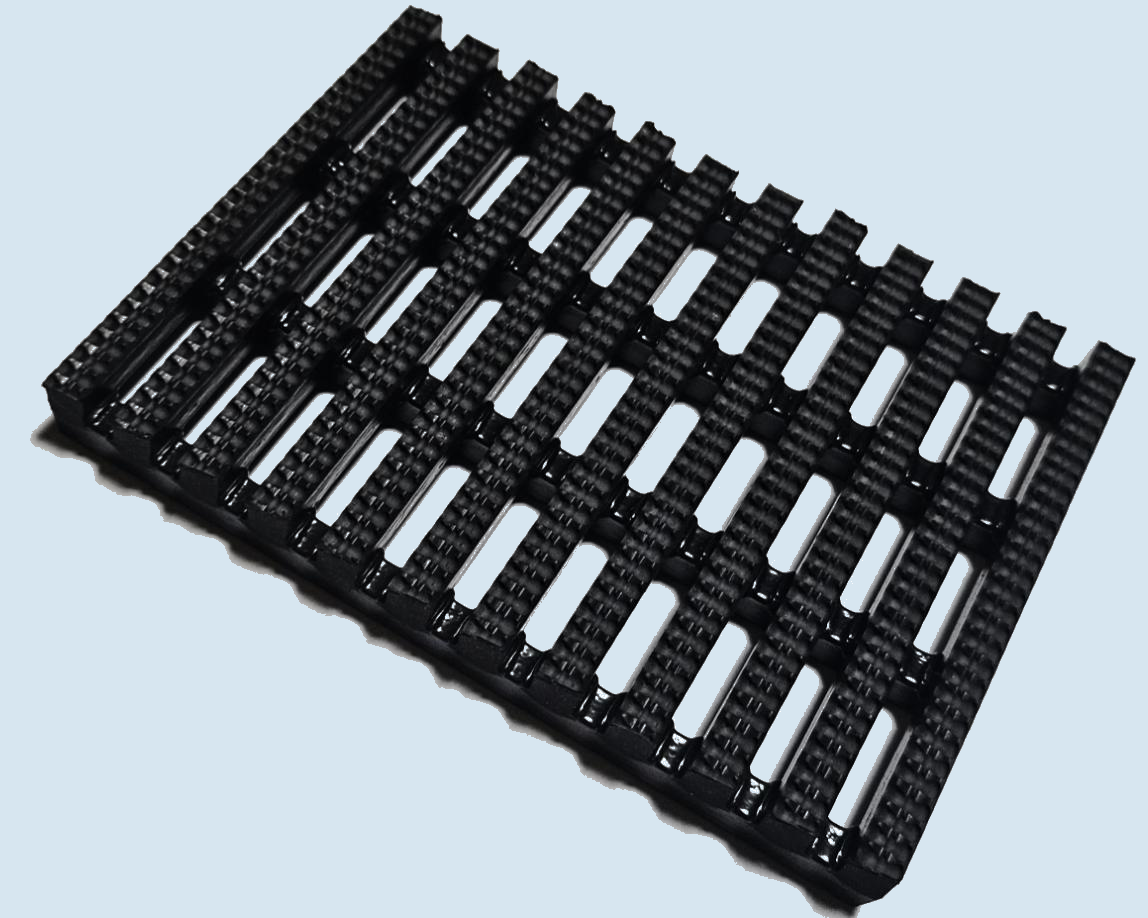

Two‑layer open grid construction in non‑porous PVC with diamond tread pattern

Insert Type
Integral PVC open‑grid traction surface

Surface Options
Open grid surface
Rolls or ramped modular sections

Traffic Rating
High traffic wet and spill‑prone environments
Suitable for pedestrian and wheeled traffic

Performance
Superior slip resistance in wet, oily and greasy conditions
Excellent drainage performance
Impermeable to liquids
Proven anti‑fatigue properties with up to 10 % fatigue reduction
Contours to uneven surfaces

Weight
7.6 kg/m²

Slip Resistance
DIN 51130: R11, V10
ASTM E303 dry/wet 87–104 / 72–88

Fire Rating
EN ISO 13501‑1: Cfl‑s1

Environmental Suitability
UV resistant
Resistant to most acids, alkalines and oils
Phthalate‑free
100 % recyclable
Hygienic non‑porous PVC resistant to bacterial growth
Operational temperature range ‑23 °C to +60 °C

Installation
Loose‑laid rolls or modular sections
Modules supplied with factory‑fitted ramped edging
Can be cut to fit on site
Suitable for surface‑mounted applications

Manufacture

Standard Roll Sizes:

10m x .06m

10m x 0.91m

5m x 1.2m

MadeTo Measure

Manufactured in the UK

Warranty
4‑year warranty

Other Colours Available

Yes

Download Data Sheet View full details

KEY FEATURES

Superior Traction

Diamond cut pattern and two-layer open-grid construction provide unparalleled grip underfoot.

Certified Slip Resistance

Offers high slip resistance for enhanced safety (DIN 51130: R11, ASTM 1677: 1.0/0.9).

Excellent Drainage

The open grid structure ensures efficient drainage (DIN 51130:V10).

Chemical, Oil, and Acid Resistant

Impermeable to fluids, offering durability in demanding conditions.

Proven Anti-Fatigue Properties

Contributes to worker comfort and boosts productivity.

Adaptable Installation

Contours easily to uneven surfaces for seamless installation.

Need more detail?

WhatsAppEmail

Summary

Surface Type:
Slip resistant open grid
Colour Options:
Red ,Blue, Black
Installation:
Suitable for both surface-mounted and recessed installations
Accessories:
Edging and joining strips available for clean finishing and seamless connection of mat sections
Configuration:
Available in roll formats and modular sizes to suit a wide range of entrance configurations
